Volume Control Damper Manufacturer in Bangalore

Explore Our Volume Control Dampers Collection

Explore our complete range of high-quality HVAC products designed for reliable performance, efficient airflow, and long-lasting durability.

Categories

Grilles
Diffusers
Louvers
Collar Dampers
Volume Control Dampers
Non Return Dampers
Pressure Relief Dampers
Access Doors
Plenum
Sound Attenuators
Fire Dampers
Variable Air Volumes
Constant Air Volumes
Control Panel
Insulation

Volume Control Damper Collection

(4 Products)

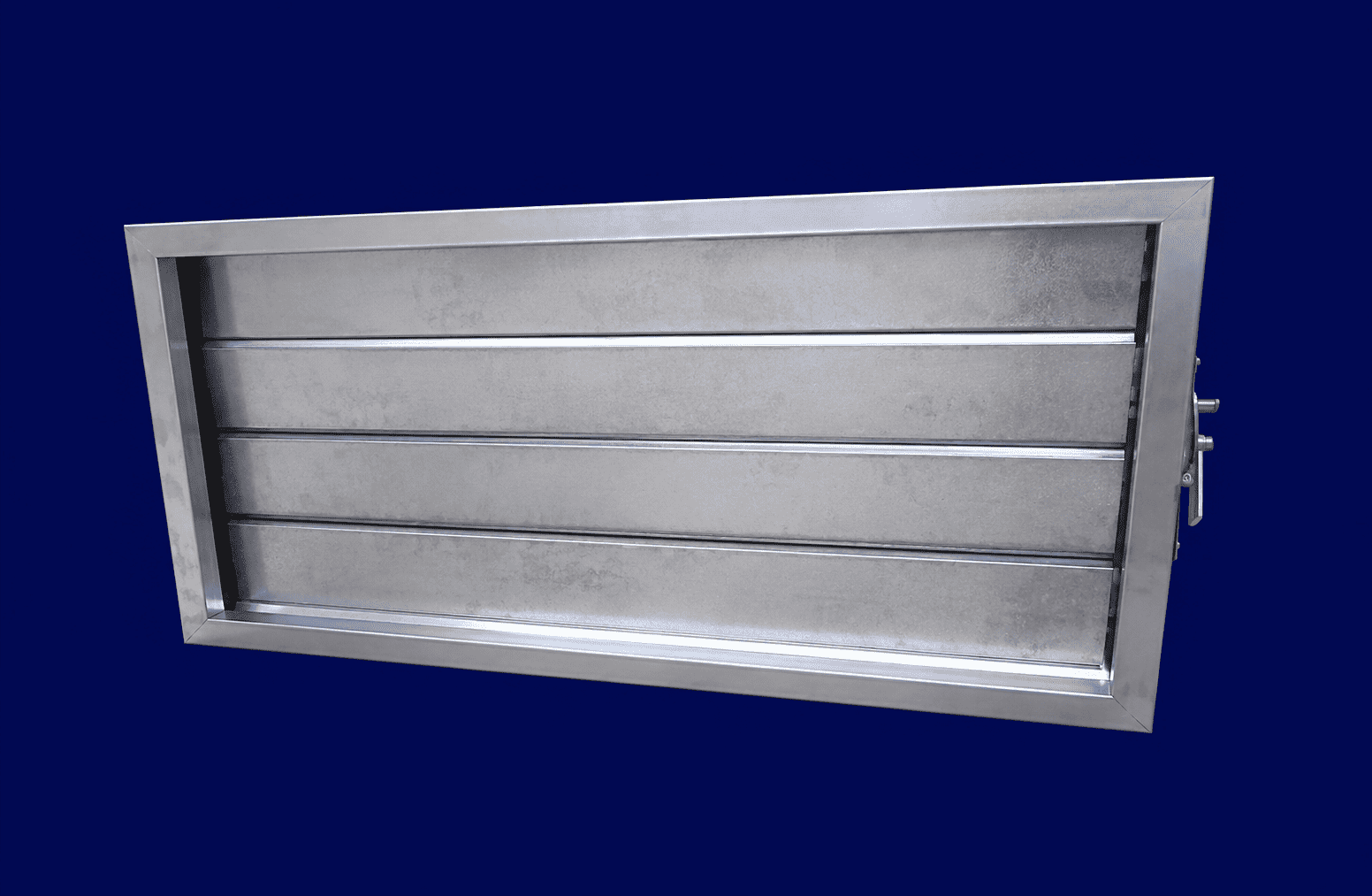

Volume Control Damper – Aluminium

Volume Control Damper – Aluminium

Extruded Aluminium Low Leakage Volume Control Damper with aero-foil opposed blades and nylon gears system outs...

View Details

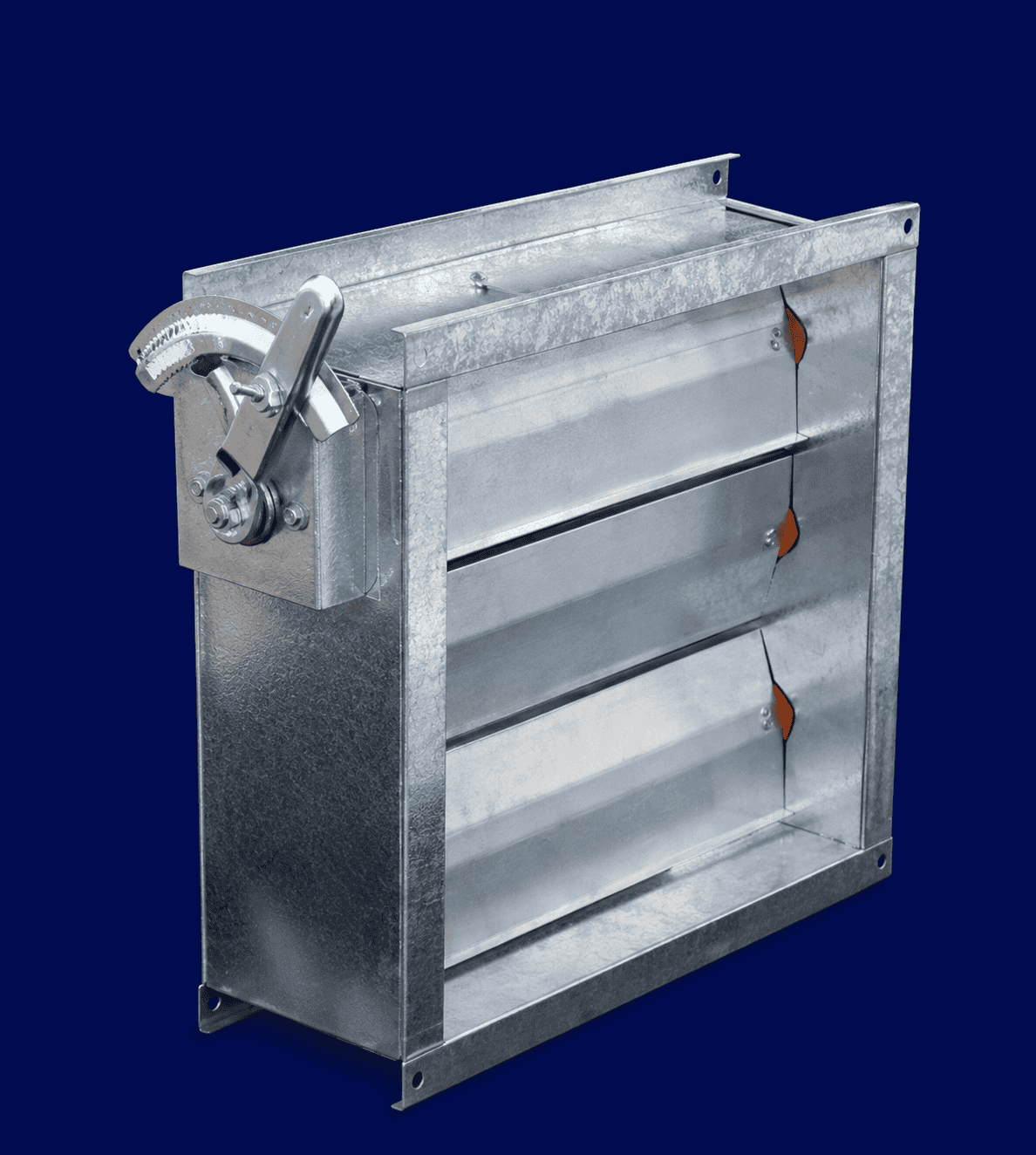

Volume Control Damper – AL + GI

Volume Control Damper – AL + GI

Volume Control Damper with Aluminium Aerofoil opposed blades and 1.2 mm thick Galvanized Frame as standard fix...

View Details

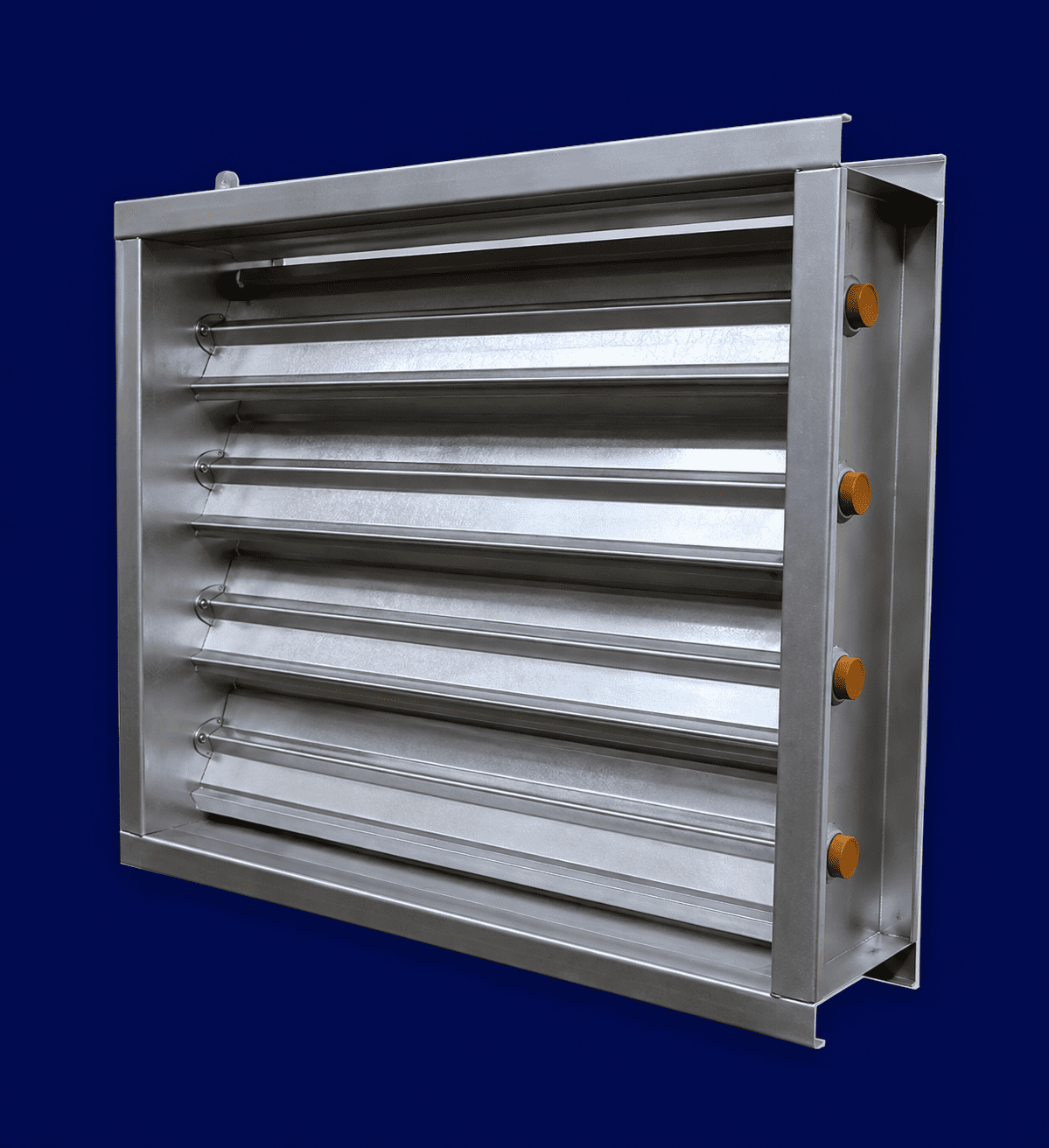

Volume Control Damper - GI

Volume Control Damper - GI

Volume Control Damper with high quality Galvanized Frame and Blade fixed with nylon bushes opposed blade opera...

View Details

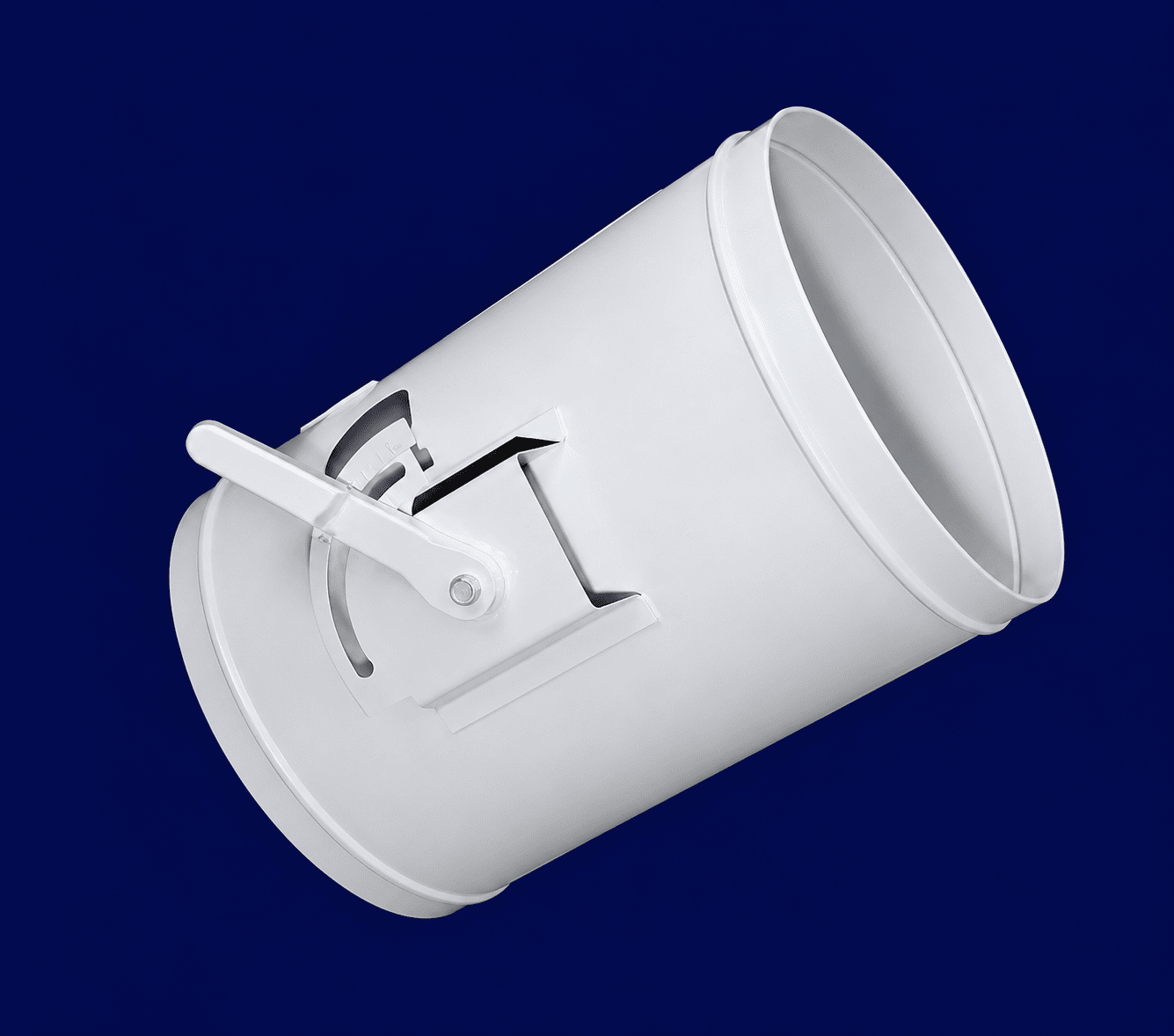

Circular Volume Control Damper

Circular Volume Control Damper

Circular Volume Control Damper is made with high quality Galvanized Frame and Single Flap Blade fixed with nyl...

View Details
Faqs?

Frequently Asked Questions

Everything you need to know about Volume Control Dampers.

It adjusts the amount of air passing through individual duct sections, helping achieve the designed airflow across different rooms and HVAC zones.

Manual dampers are suitable for fixed balancing requirements. Motorized dampers are preferred where airflow needs automatic or remote adjustment through the HVAC control system.

Motorized dampers can be fitted with suitable actuators for integration with HVAC control or Building Management Systems, depending on the project’s control requirements.

Air Master Volume Control Dampers can be provided with blade gaskets to reduce air leakage and improve shut-off performance where lower leakage is required.

Yes. A damper introduces resistance into the airflow path, particularly when partially closed. Correct sizing helps maintain airflow control without creating unnecessary pressure loss.

Aerofoil-shaped blades provide a smoother airflow path, helping achieve effective airflow regulation while limiting turbulence and pressure resistance.

Yes. Air Master offers Circular Volume Control Dampers specifically designed for airflow regulation in round HVAC ducts.

Yes. Depending on project requirements, motorized dampers can be supplied with compatible actuators from brands such as Belimo, Honeywell and Gruner.

An incorrectly sized damper can result in excessive air velocity, pressure drop, noise or poor airflow control. Damper sizing should therefore match the duct dimensions and design airflow.

Yes. Damper configuration can be selected according to required size, material, operation method, actuator, leakage-control requirements and finish to suit the HVAC project specification.
