Model No. : APB
Specification:
Plenum box made of high quality galvanized sheet of required gauge and 50mm spigot as standard. Insulation of required thickness and density as well as butterfly damper are available as options.
Plenum
DESCRIPTION
- Fabricated from 24, 22 or 20 gauge high quality glavanised steel sheet.
- Circular spigots of required diameter and standard length of 50mm as standard can be fixed to the plenum box. Square, rectangle and oval shape spigots are available on request.

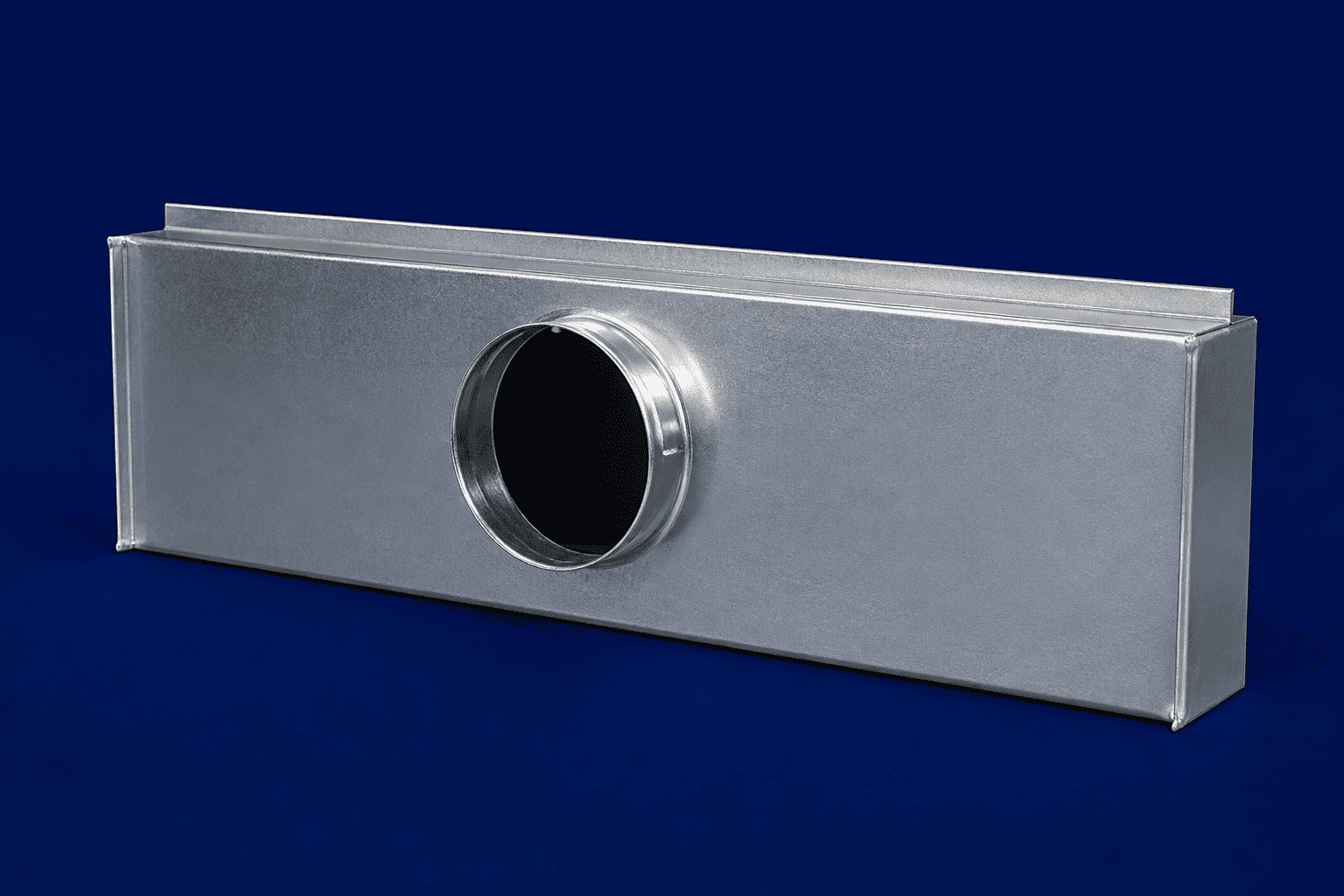

- Plenum boxes with side inlet are standard. Other positions are available as per the site conditions to suit client specifications.
- Plenum boxes of length upto two meters can be manufactured with single spigot. For more than 2 meters plenum boxes will be arranged with multiple spigots.
- Volume control butterfly dampers can be fixed to the spigots on request.
- Fixing brackets are provided at all four corners on the top side by default for hanging the plenum from ceiling.
- Large size plenums can be specially manufactured on request.
PRODUCT ORDER CHECKLIST
| MODEL | FLANGE | INSULATION OPTIONS | ACCESSORIES | ||
|---|---|---|---|---|---|
| MATERIAL | THICKNESS | DENSITY | |||
| APB | 25 mm | Fibre Glass | 25 | 24 | Butterfly |
| 50 mm | Nitrile Rubber | 50 | 48 | Damper | |
FIXING DETAILS
