VAV – Pressure Independent– With VCD

DESCRIPTION:

• Unit has a rectangular air inlet, and rectangular discharge outlet to the room.

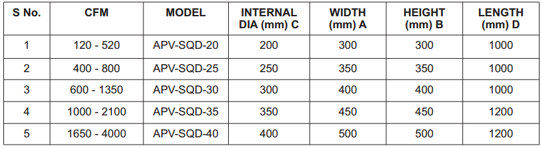

• Capacities range from 120 to 4000 CFM in 4 sizes.
• Factory calibrated to job requirements.
• Equipped with high quality multi-point differential pressure flow grid for accurate airflow measurement.
• Concealed enclosure with rectangle duct for control box mounting.
• Damper edge is sealed with foam gasket to prevent air leakage. The damper shaft is made of solid G.I. rotating in low friction, self lubricating permanently impregnated brass bearings.
• Sturdy construction and low noise generating capacity to obtain required NC without compromising performance. Manufactured to ensure long and maintenance free service.
• On/off, modulating DC controls 0 to 10V. Belimo/KMC control/Neptronic controls or any controllers and thermostats of customer choice available. BMS compatible actuators can be provided on request.
• Casing construction meets SMACNA standards and provides excellent strength and rigidity. Thoroughly sealed to prevent air leakage.
• Interior surface is acoustically and thermally lined with 15mm Nitrile Rubber.
• An opposed blade volume control damper with aerofoil blade is built-in for any adjustment in the inlet pressure during air balancing.
