VAV – Pressure Independent– Square to Square

DESCRIPTION:

• Unit has square air inlet, and square discharge outlet to the room.
• A circular transition piece is built-in to the frame

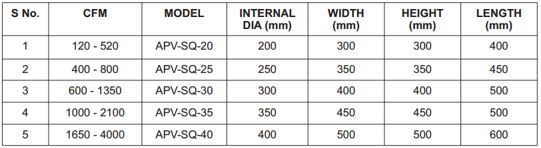

• Capacities range from 120 to 4000 CFM in 5 sizes.
• Factory calibrated to job requirements.
• Equipped with high quality multi-point differential pressure flow grid for accurate airflow measurement.
• Enclosure provided for control box mounting.
• Damper edge is sealed with foam gasket to prevent air leakage. The damper shaft is made of solid G.I. rotating in low friction, self lubricating permanently impregnated brass bearings.
• Sturdy construction and low noise generating capacity to obtain required NC without compromising performance. Manufactured to ensure long and maintenance free service.
• On/off, modulating DC controls 0 to 10V. Belimo/KMC control/Neptronic controls or any controllers and thermostats of customer choice available. BMS compatible actuators can be provided on request.
• Casing construction meets SMACNA standards and provides excellent strength and rigidity. Thoroughly sealed to prevent air leakage.
• Acoustically and thermally lining of 15mm Nitrile Rubber can be optionally provided as an extension to the VAV.
