VAV - Bypass

DESCRIPTION:

• Unit has one primary air inlet, one rectangular discharge outlet to the room, and one rectangular bypass discharge outlet.
• Units are tested by ETL Intertek in accordance with AHRI Standards 880-2011, “Performance Rating of Air Terminals” and ASHRAE 130-2008, “Methods of Testing Air Terminal Units”.

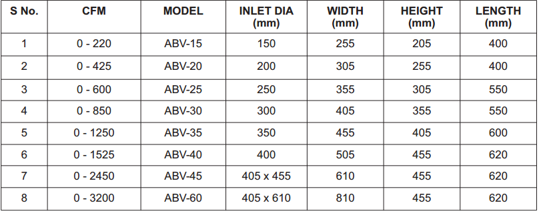

• Capacities range from 50-3200 CFM in 8 sizes.
• Integral sound attenuator provides excellent noise control, additional sound attenuator can be provided.
• Conveniently accessible externally mounted controls.
• Inlet connection bead offers a means for secure flex duct connections.
• Enclosure for control box mounting. Damper edge is sealed with foam gasket to prevent air leakage. The damper shaft is made of solid G.I. rotating in low friction, self lubricating permanently impregnated brass bearings.
• TDF flange on all four sides of rectangular discharge as standard.
• Sturdy construction and low noise generating capacity to obtain required NC without compromising performance. Manufactured to ensure long and maintenance free service.
• On/off, modulating DC controls 0 to 10V. Belimo/KMC control/Neptronic controls or any controllers and thermostats of customer choice available. BMS compatible actuators can be provided on request.
• Casing construction meets SMACNA standards and provides excellent strength and rigidity. Thoroughly sealed to prevent air leakage.
• Interior surface is acoustically and thermally lined with 9mm Nitrile Rubber.
