Sand Trap Louvre

DESCRIPTION:

• The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.

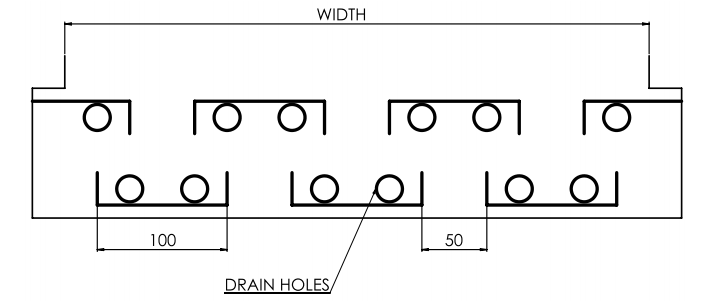

• Composed two sets of inverted U-channels mounted vertically on two opposite rows.
• Drain holes of diameter 20 mm are provided in two rows at the bottom of the louver for emptying filtered sand and dust.
• Can be manufactured from G.I or SS as option.
• Designed to separate sand and dust from the air stream.
• Generally used for ventilation applications and at inlet duct of air handling unit.
• Multiple sections will be assembled as per request.
• Fine filter and metal mesh filter can be provided as option for fresh air intake applications.
• Collar damper available as accessory for supply air.
