Plenum Box - Square / Rectangular

DESCRIPTION:

• Fabricated from 24, 22 or 20 gauge high quality glavanised steel sheet.
• Circular spigots of required diameter and standard length of 50mm as standard can be fixed to the plenum box. Square, rectangle and oval shape spigots are available on request.
• Plenum boxes with side inlet are standard. Other positions are available as per the site conditions to suit client specifications.
• Plenum boxes of length upto two meters can be manufactured with single spigot. For more than 2 meters plenum boxes will be arranged with multiple spigots.
• Volume control butterfly dampers can be fixed to the spigots on request.

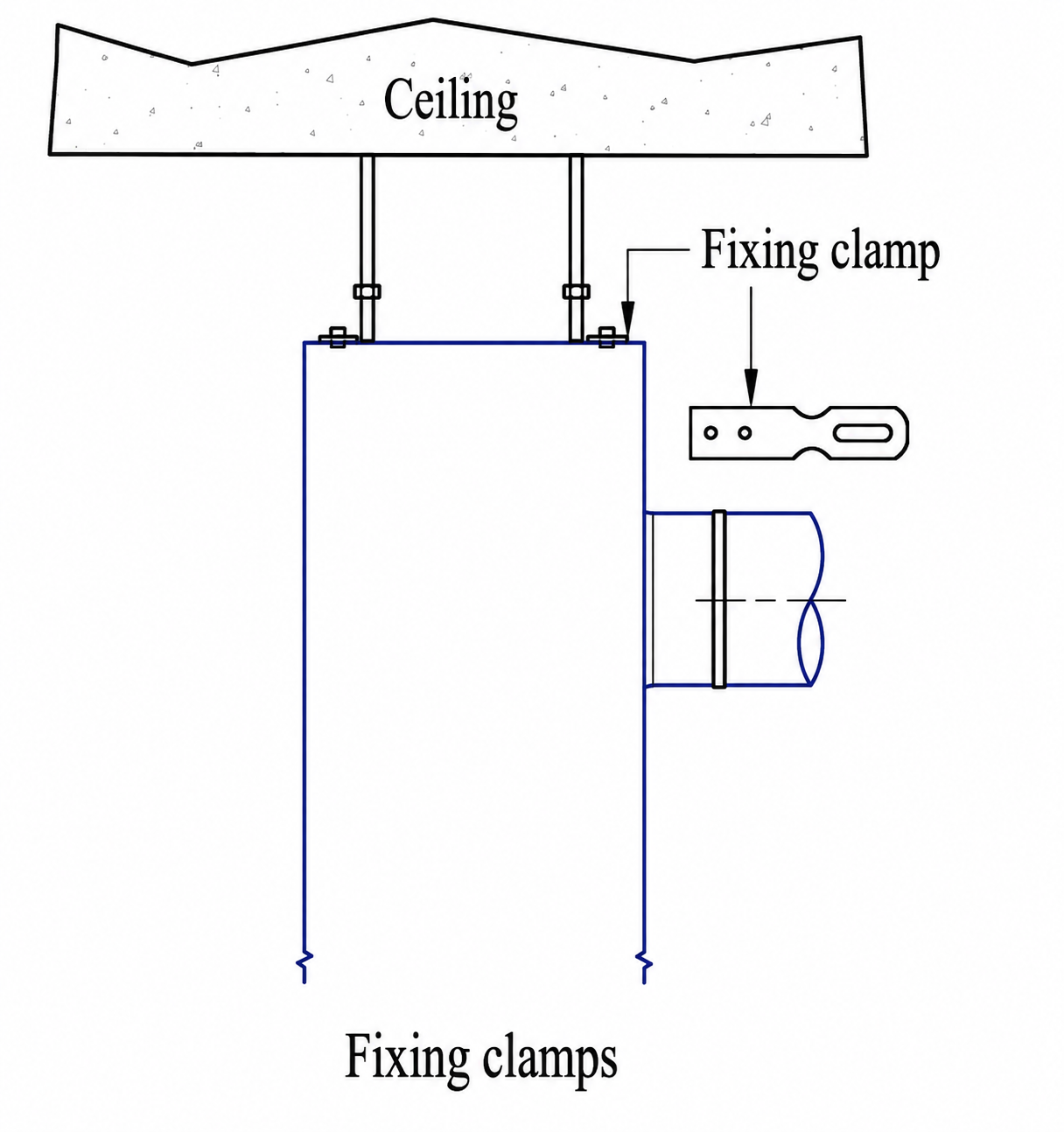

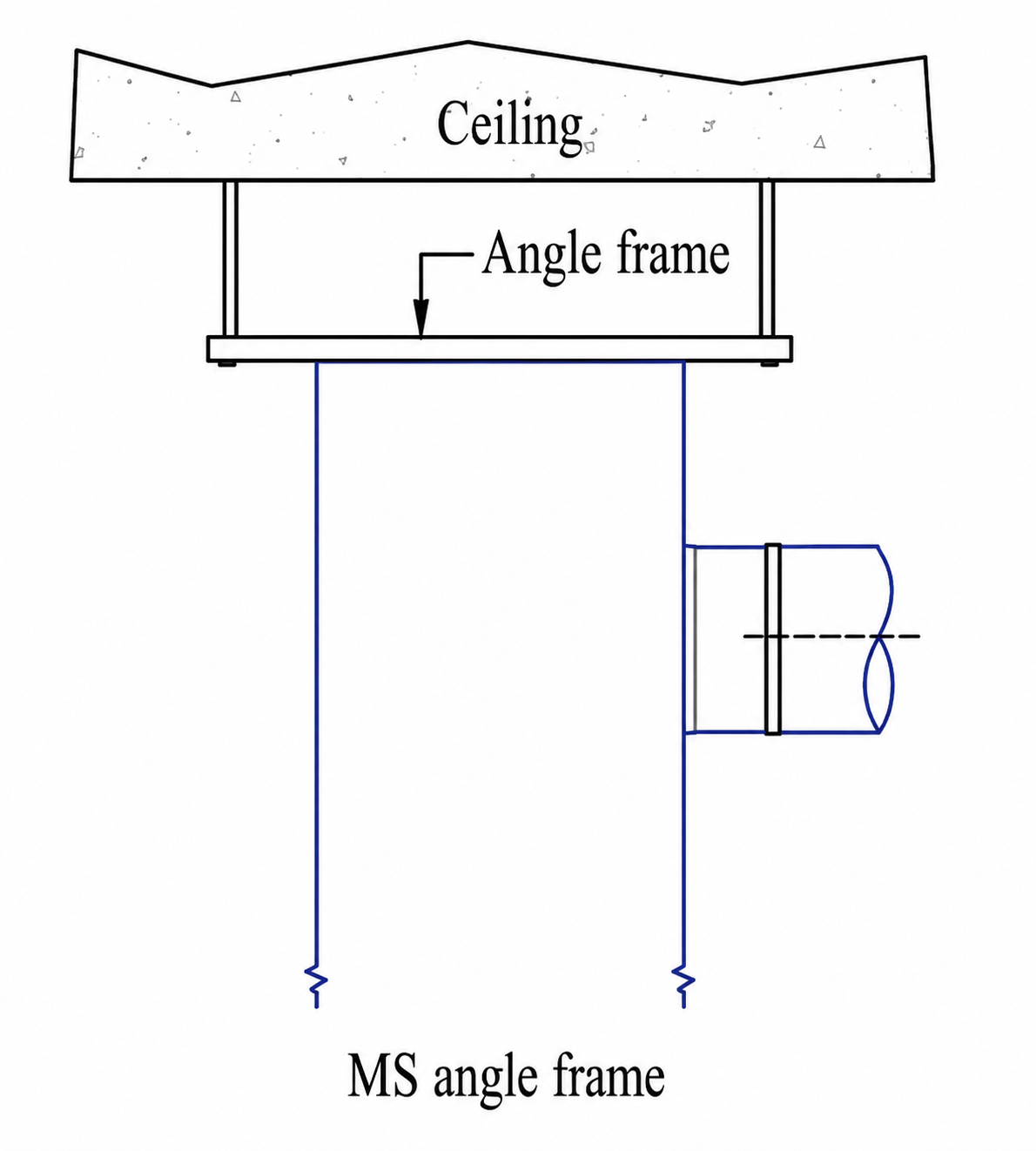

• Fixing brackets are provided at all four corners on the top side by default for hanging the plenum from ceiling.
• Large size plenums can be specially manufactured on request.
