Linear Bar Floor Grille for Fascade Ventilation
Model No. : AFG-AF
Specification:

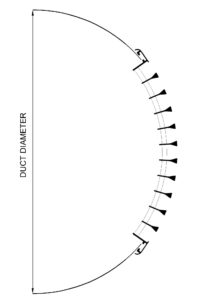

Duct Mounted Curved Grille
DESCRIPTION
PRODUCT ORDER CHECKLIST
| DUCT MOUNTED | |
|---|---|
| Model | ALBG-CD |
| Bar | 5mm, 3mm |
| Pitch | 15 mm |
| Flange | 16mm, 30mm |
| Deflection | 0, 15 Deg |
| Accessories | Collar Damper |
| Diameter | Duct Dia: 200, 250, 300, 350, 400, 450, 500, 550, 600mm |
| Colour | RAL Colours, Mill Finish |
*Required: Neck Size, Quantity and RAL Colour Code along with above specifications.
FIXING DETAILS
