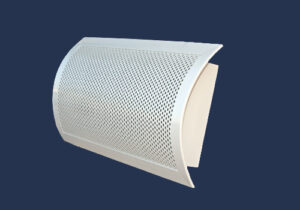

Displacement Diffuser

DESCRIPTION

• The Air Master displacement diffuser is designed to achieve thermal comfort, efficient ventilation and improve indoor air quality.
• The distribution unit can be constructed in cylindrical, semi-cylindrical, quarter cylindrical, trianglar, rectangular, square shapes.
• The air inlet connection can be circluar or rectangular and can be located either at the top or bottom of the diffuser.
• It can be mounted of floor, ceiling or wall.
• Displacement diffusers are custom designed and fabricated as per requirement.
• Accessories: mounting base/plate (if any).

PRODUCT FEATURES

• 36° degree air distribution pattern
• Low noise
•  No visible joints
• Aesthetic appearance/architecturally appealing
• Shapes to suit interior design
• Circular air inlet for efficient air distribution
• Can add more if necessary

MATERIAL/CONSTRUCTION

• ➤ Face plate-Perforated GI/SS/MS/Aluminium➤ Thickness 16 G to 22 G depending upon dia and height of the displacement diffuser.

  TECHNICAL DATA:

  ➤ Air volume: From 50 L/s to 1500 L/s

  ➤ Noise levels: between 20 db to 35 db

  ➤ Free Area: 20% to 30% depending upon perforation pattern

TECHNICAL DATA

• Air volume: From 50 L/s to 1500 L/s
• Noise levels: between 20 db to 35 db
• Free Area: 20% to 30% depending upon perforation pattern
