Acoustic Louvre

DESCRIPTION:

• Air Master high performance absorptive type Acoustic Louvers attenuate undesirable noise from being transferred into the environment with minimal air-flow restriction.
• Designed to be architecturally appealing in addition to having sturdy construction with maximum acoustic performance and minimal pressure drop.

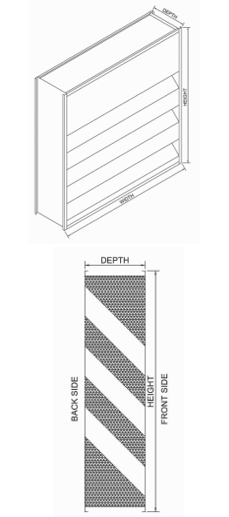

• Frame is inverted U shaped having 25mm flanges with a flat blade design as standard.
• Available in both single and double banks. Louver depth above 300mm will have double bank construction with chevron blade design.
• Acoustic infill media with superior characteristics of being organic, non-combustible vermin and moisture proof with density of 48 Kg/m3 is used. It meets the requirements of EN ISO 1182 and ASTM C665.
• Insulation is lined to prevent the ingress of media into the air stream.
• Modular design of Air Master Acoustic Louvers allows easy site assembly of multiple section.
• For areas that require accessibility, options such as custom made doors with hinged acoustic louvers or sliding doors with removable/fixed acoustic louvers are available.
• Tested and certified by Intertek Laboratory USA (NVLAP) in accordance with ASTM standard E477-2013 entitled “Standard Method of Testing Duct Liner Materials and Prefabricated Silencers or Acoustical and Airflow Performance”.
• Minimum Single Section Size (WxH): 300x450 mm
• Maximum Single Section Size (WxH): 1800x2400mm
• Applications include generator room, pump room, compressor room and car park ventilation.
• Generally used for fresh air intake and exhaust applications.
